Map Reader — tracing history off the page

What this is

TimeWalk rebuilds historical cities (Manhattan 1776, Philadelphia 1776, Boston…) in Unreal Engine. The geometry pipeline starts with a period map, georeferenced as a Cloud-Optimized GeoTIFF (COG), from which we trace individual building footprints into the timewalk PostGIS schema. Hand-tracing is accurate but slow — minutes per building, and colonial Philadelphia alone has thousands. Map Reader collects tooling that lets a segmentation model (Meta's SAM) do the outline work from a single click or box prompt, while a human stays in the loop for verification.

The tool landscape

Ranked verdict

Recommended sequence: run the interactive Geo-SAM pass now to get real footprints into PostGIS; keep every accepted polygon as a training pair; once enough accumulate, fine-tune MapSAM on PC-5090's RTX 5090 with those pairs and move to prompt-free batch extraction; keep samgeo as the scripted layer that runs and scores both.

Pilot: 1762 Clarkson & Biddle, Philadelphia

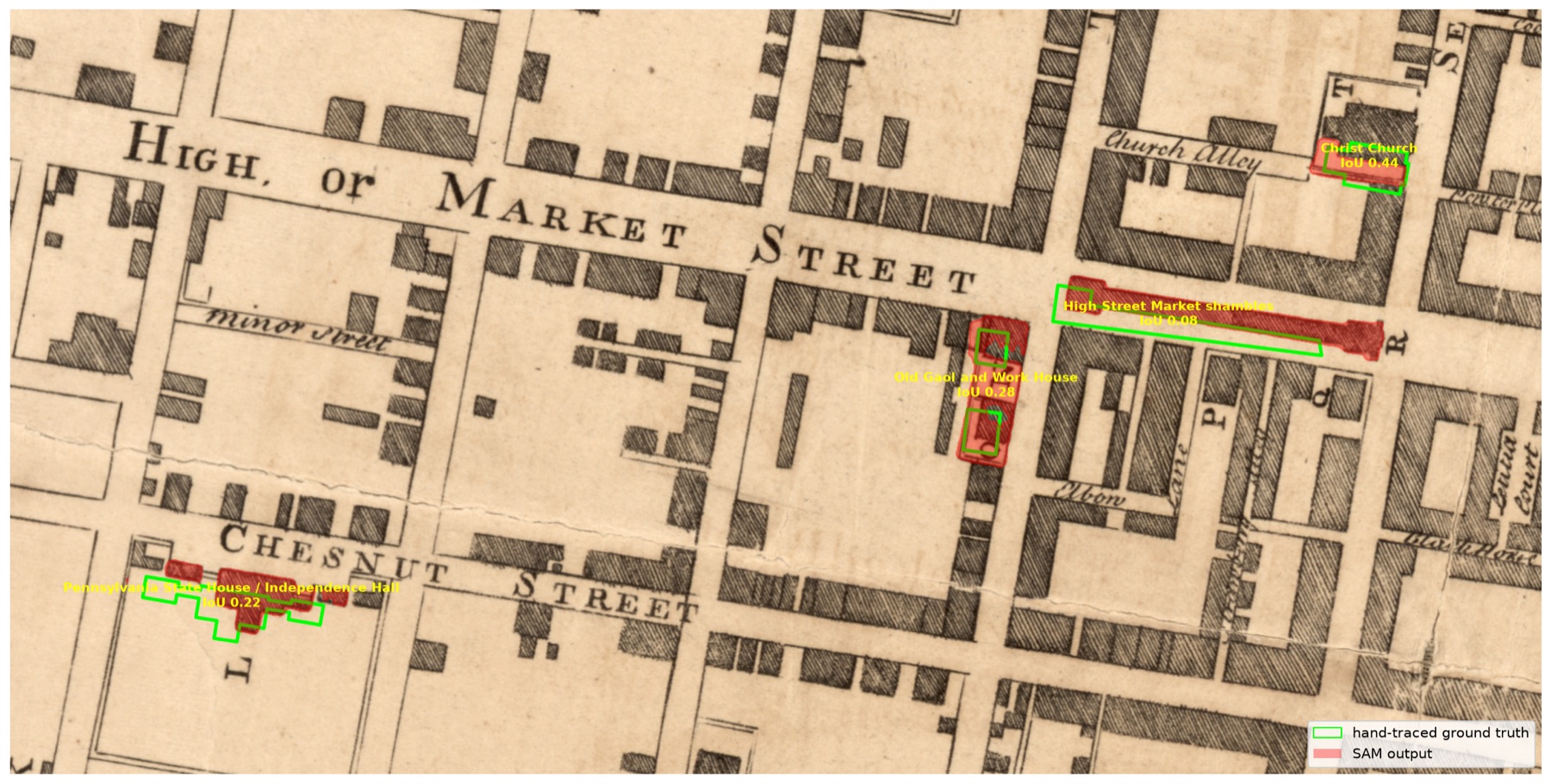

We ran the scripted samgeo flow against a map we had already hand-traced, so we could score the machine against human ground truth. Source raster: tw_1762_philadelphia_map_clarkson_biddle_cog.tif (EPSG:3857, 0.41 m/px, our best-georeferenced Philadelphia sheet — median residual ~6 m). Ground truth: hand-traced landmark parcels in PostGIS (timewalk."1776_philadelphia_parcels_landmarks"). Four landmarks that existed in 1762 were prompted with a padded box each (simulating a user dragging a rough box), on a 2298×1148 px crop of the city core, SAM ViT-B on CPU (Mac mini).

Timing on CPU: one-time image encode ~5 s per window, then 0.06–0.09 s per building prompt. (Box-only prompts scored mean IoU 0.186; adding the centroid point raised it to 0.256.)

Honest verdict

Mean IoU 0.256 is too low for unattended auto-tracing, and the reasons are instructive: SAM tends to grab a whole hatched block or street-length strip from one prompt; thin geometries (the market shambles is ~10 px wide) lose most of their IoU to a few pixels of lateral offset; and for surviving buildings our ground truth is the modern OSM footprint by policy, which intentionally disagrees with the period ink SAM is tracing. The ~6 m median georeferencing residual (~15 px) shifts everything a little more.

The speed result is the real finding: after a one-time ~5 s encode, prompts return in under a tenth of a second on a CPU. That makes the interactive QGIS Geo-SAM flow genuinely viable — click a building, get a draft polygon instantly, fix its corners, accept. SAM is a tracing accelerant, not a tracer. Upgrade paths: the larger ViT-H checkpoint, negative points on neighboring buildings to split hatch blocks, and MapSAM-style fine-tuning on our own hand-traced pairs.

How to use it

A. Interactive tracing in QGIS (Geo-SAM)

1. Install the Geo-SAM plugin (QGIS ≥ 3.30; install torch + torchgeo into QGIS's Python first, then copy the plugin into your QGIS plugins folder and enable it).
2. Load the COG in QGIS, then run Geo-SAM Image Encoder on the map (or a clipped working area). This is the slow step — it saves encoder features to disk.
3. Open the Geo-SAM Segmentation panel, point it at the saved features, and trace: left-click inside a building (foreground point), right-click to exclude (background point), or drag a box. Press S to save each polygon.
4. Save the shapefile/GeoPackage, clean geometry (see policy below), and load to PostGIS.

B. Scripted batch flow (samgeo) — what the pilot ran

# 1. environment (Python ≥3.10)
python3 -m venv env
env/bin/pip install segment-geospatial torch torchvision

# 2. crop a working window from the COG (bounds in EPSG:3857)
gdal_translate -projwin XMIN YMAX XMAX YMIN \
  tw_1762_philadelphia_map_clarkson_biddle_cog.tif crop.tif
# (or rasterio: see pilot/crop.py — useful when brew gdal is broken)

# 3. segment with box/point prompts and vectorize
#    (full script: pilot/run_sam.py)
python - <<'EOF'
from samgeo import SamGeo
sam = SamGeo(model_type="vit_b", automatic=False)   # checkpoint auto-downloads
sam.set_image("crop.tif")                            # one-time encode
masks, scores, _ = sam.predictor.predict(box=box_px, multimask_output=False)
# vectorize mask -> polygons with rasterio.features.shapes (georeferenced)
EOF

# 4. score against ground truth / inspect
python pilot/compare_iou.py

C. Load results to PostGIS

ogr2ogr -f PostgreSQL \
  PG:"host=db.<project>.supabase.co port=5432 dbname=postgres user=postgres sslmode=require" \
  pilot/results/sam_output.gpkg sam_footprints \
  -nln timewalk.sam_footprint_candidates \
  -nlt MULTIPOLYGON -t_srs EPSG:3857 -lco GEOMETRY_NAME=geom

Load into a candidates table, review in QGIS against the raster, then merge approved rows into the era parcel table.
